Connection method:
1. Wired
Switch wired, PC wired, support PC Steam platform
XINPUT: Device name Xbox 360 Controller for Windows
DINPUT: Device name S600 Gamepad
When connected to the PC, press and hold SELECT (-) and START (+) for more than 3 seconds to switch between DINPUT and XINPUT. The handle mode lights XINPUT (lights 1, 4 are on), DINPUT (lights 2, 3 are on)
2. Wireless
Bluetooth connection, using Switch mode.
Bluetooth name: Pro Controller.
In Switch mode, the handle mode lights are allocated by the host
Bluetooth pairing:
The Bluetooth function of the handle needs to be paired when connecting to the Switch host or mobile phone for the first time.
When the handle is turned off, press and hold the pairing button for more than 1 second, the mode light flashes in 50ms intervals in the form of a marquee, and the pairing is entered Mode, if it is less than 1 second, it will enter the reconnect mode. If the pairing fails for more than 2.5 minutes, the handle will be turned off
Back to connect:
The handle has already been paired with the Switch host or mobile phone, you dont need to re-pair it, it will automatically connect after entering the back connection
When the handle is turned off, short press any one of the basic button or function button, the mode light will be in the form of a marquee with 120ms
Flashes at intervals, the handle is turned on and enters the reconnecting state
TURBO automatic function:
Press the Turbo button for the first time, the handle becomes semi-automatic mode
Press the Turbo button for the second time, the handle becomes fully automatic mode
Press the Turbo button for the third time to eliminate the Turbo function of the case
Press the Turbo button for more than 3S and then press the minus button to eliminate the Turbo function of all buttons.
One-key reset function:

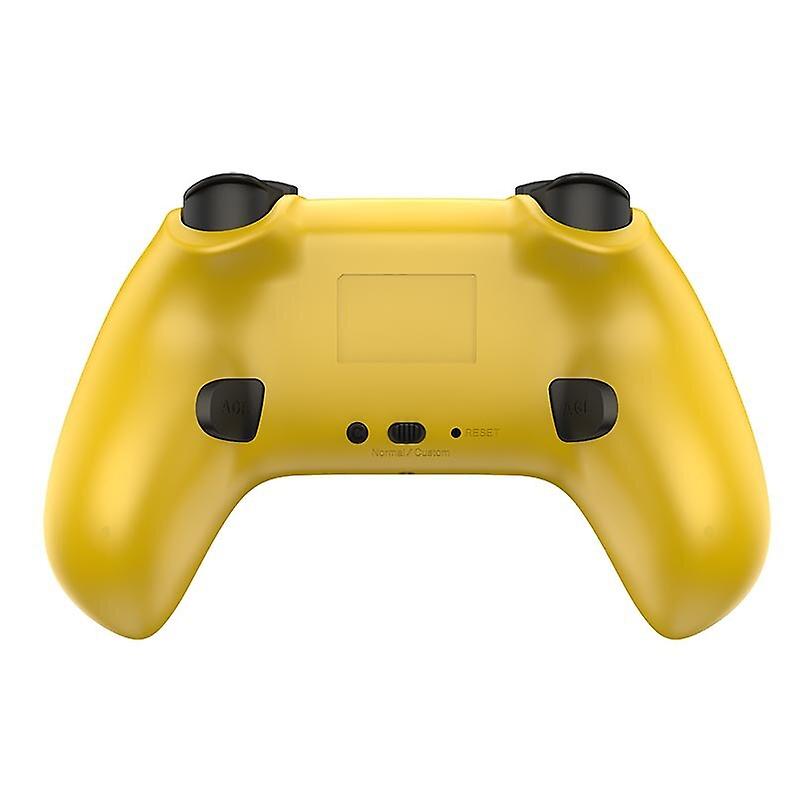

When the controller is abnormal, you can press the “C” button on the back of the controller to reset.
Color | blue, gray, black, yellow |
---|
